Ice Cube Plastic Tray Making Machine Food Tray Thermoforming
Machine
Introduction:
This machine Mainly used for the products with simple structure but
in big quantity, such as small cake trays, button cell trays, cup
carriers and disposable medical care products.
TECHNICAL PARAMETER
Item Model | DPP-260 |
Cutting Frequency | 10-50times/min |
Max. Forming Area and Depth | 250×180×30 |
Pulling Length | 40-200 |
Packaging material(I.D.Φ75) | PVC(mm) | (0.15-0.8)×260×(Φ400) |
PTP(mm) | (0.15-0.8)×260×(Φ400) |
PET(mm) | (0.15-0.8)×260×(Φ400) |
Power | 380V 50Hz 4.5k |
Air compression(self-prepared) | 0.6-0.8Mpa≥0.5m³/min |
Recycle water or circulating water consumption | 40-80L/h |
Overall Dimension(L*W*H) | 2100×750×1450(including foundation) |
Weight | About 600kg |
Performance and characteristic
Flat type structure design, small volume, convenient operating.
The machine adopts compressed air blow forming, air clip pulling
and automatic cutting with flat type structure design.
The mold for the machine adopts trapezoid style fixing, can move
forward and backward easily.
It is very convenient to change mold, about 30 minutes.

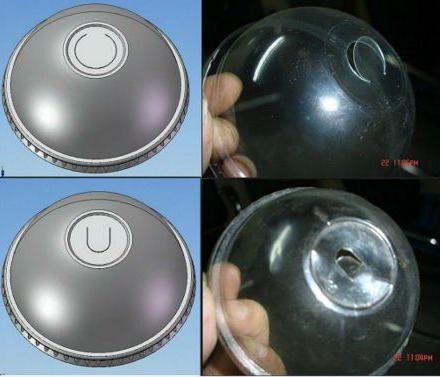

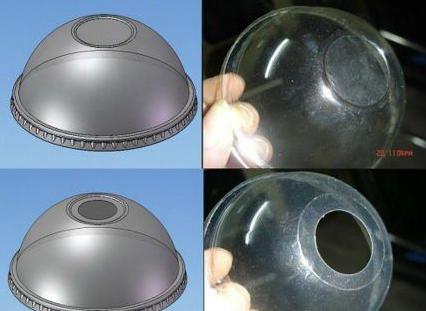

Applicable Object: PS/PVC/PET Plastic cup lid,Hardware tray,food
tray,pharmaceutical tray etc.
PACKAGE
- The machine will not be shaking in transport with wooden fixed.
- The machine will not be affected with damp in transport with packed
with PE plastic bags.
- Easy shaking station will fixed with hard rope.
- Long machine will packed separately.
- If there are strict requirements, chassis can use iron girders.
Questions and Answers
Q : How about the after-sales service ?
A:Our machine have one year guarateen, life long mantainance.
We have a strong team special for after sales. We can arrange
engineer to do service for you.
Q: are you a factory or trading company?
A: we are a factory in this field nearly 15 years ( early named
Ruian Huali Pharmaceutical Machinery Factory)
Q: How does your factory do regarding quality control?
A: Quality is our invariable topic. It’s the basement of company’s
development.
From beginning of company opening, we are especially focus on
quality job.
Our pharmaceutical equipment have passed the GMP certification, ISO
international quality system certification, CE certification and
gain several utility model patents and invention patents issued by
state patent office of China.
Q: what information should I let you know when I want to get
quotation?
A: - the size of your product,the target capacity you want the
machine meet. The more information the better.
