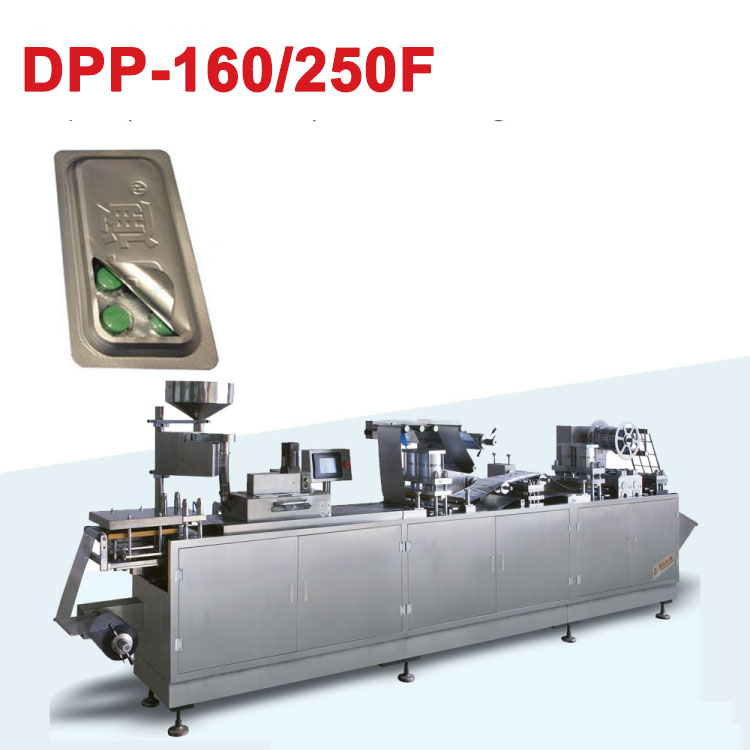

PLC Control Aluminum PVC Pharmaceutical Blister Packaging Machines
Performance and Characteristics:
1.Enter the pulling length in the touch-screen based on your plate
size. Pulling length can be adjusted .Serve motor is adopted on the
machine for precise controlling the pulling length and saving
material.
2.Easy to change mold because the mold is fixed by located groove.
3.Adopt the interface of human-machine and PLC control system.
Speed can be controlled by step-less transducer.
4.The machine comes with Automatic Detection System for object
absence in blisters by mechanical detecting system or optical
sensor or camera system is required by clients.
5.The machine gets the function for easy cutting line embossing,
batch number embossing and wasted packaging material rewinding.
6. Cylinder hot sealing,the heating molds will automatically
separate when the machine stops, which can protect the packing
material from damage,extend the machine’s life.
Specifications
Model | ALU-Plastic-ALU | ALU ALU | ALU-PVC |
Machine Body | Stainless Steel 304 /316(medicinal contact can be selected SS3016) |
Blanking frequency(times/min) (Standard size 57*80) | 12-30 | 15-30 | 20-45 |
Adjustable pulling length | 30-120mm |
|
|
Max Forming area and depth | 160*110*15mm | 160*110*13mm | 160*110*15mm |
Power supply(Three phase) | 380V/220V 50HZ 7KW | 380V/220V 50HZ 4.5KW | 380V/220V 50HZ 5.5KW |
Packaging Material (mm) (I.D.Φ75mm) | Tropical Foil 160*(0.1-0.12)*(Φ400) PVC 160*(0.15-0.4)*(Φ400) | Alu Alu Foil 160*(0.14-0.18)*(Φ400) | PVC 160*(0.15-0.4)*(Φ400) |
Blister Foil: 160*(0.02-0.15)*(Φ250) |
Air compressor | 0.6-0.8Mpa ≥0.45m3/min (self-prepared) |
Mould cooling | (Recycle water or circulating water consumption) 40-80 L/h |
Overall Dimension(L*W*H) (including foundation) | 3660*700*1500 |
Dimension of Each Part | 1200*700*1500(front) |
1460*700*1400(middle) |
1000*700*1400(back) |
Weight | About 1200kg |
This machine can be equipped with image detecting controlling
device; the automatic function will be improved further, details as
follow:
1. Product detecting and rejecting functions: check out the pills
of which the rate of defect is above 15%, half-filled capsules and
empty capsules; it can reject waste plate automatically.
2. On line statistical function: can calculate the number of the
checked and rejected products.
3. Tracing and displaying functions for the waste plate: tracing
and displaying the position and situation of the waste plate on the
main screen of the monitor, until rejected.
4. Manual rejecting Function: the system has the function of point
reject and continuous reject.
5. System protective function: the system will alarm if troubles
happen.
