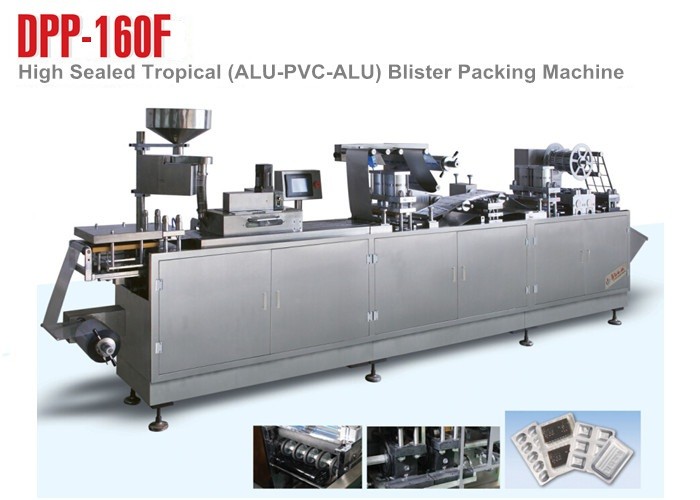

Aluminum Plastic Blister Line Pharmaceutical Packaging Machine CE
Certificated
Especially suitable for the packaging requirements of avoiding
moisture and light, sealing in tropical area and moist area.
This machine can be used in three functions including AL/PL/AL,
AL/AL, and AL/PL.
FEATURES:
1. Adopt gear reducers from Rexnord Company of Germany, adjustable
stroke, well performance, lower noise, long life and stable
operation.
2. PLC Human Interface control system.
3. Automatic checking, rejection devices.
4. Linkage segment structure (one part is PVC forming, feeding and
heat- sealing, the other is heating aluminum cool forming,
heat-sealing and punching),,which is convenient to enter into
workshop.
5. Advanced and accurate controlled system for light, electricity
and gas. Make sure synchronization and register printing packaging
for feeding and forming of PVC and tropical aluminum, filling,
sealing, printing batch number, punching, automatic reject,
collecting waste etc.
This machine can be equipped with image detecting controlling
device; the automatic function will be improved further, details as
follow:
1. Product detecting and rejecting functions: check out the pills
of which the rate of defect is above 15%, half-filled capsules and
empty capsules; it can reject waste plate automatically.
2. On line statistical function: can calculate the number of the
checked and rejected products.
3. Tracing and displaying functions for the waste plate: tracing
and displaying the position and situation of the waste plate on the
main screen of the monitor, until rejected.
4. Manual rejecting Function: the system has the function of point
reject and continuous reject.
5. System protective function: the system will alarm if troubles
happen.
Specifications
Model | ALU-Plastic-ALU | ALU ALU | ALU-PVC |
Machine Body | Stainless Steel 304 /316(medicinal contact can be selected SS3016) |
Blanking frequency(times/min) (Standard size 57*80) | 12-30 | 15-30 | 20-45 |
Adjustable pulling length | 30-120mm |
|
|
Max Forming area and depth(mm) | 160*110*15 | 160*110*13 | 160*110*15 |
Power supply(Three phase)
| 380V/220V 50HZ 7KW | 380V/220V 50HZ 4.5KW | 380V/220V 50HZ 5.5KW |
Packaging Material (mm) (I.D.Φ75mm) | Tropical Foil 160*(0.1-0.12)*(Φ400) PVC 160*(0.15-0.4)*(Φ400) | Alu Alu Foil 160*(0.14-0.18)*(Φ400) | PVC 160*(0.15-0.4)*(Φ400) |
Blister Foil: 160*(0.02-0.15)*(Φ250) |
Air compressor | 0.6-0.8Mpa ≥0.45m3/min (self-prepared) |
Mould cooling | (Recycle water or circulating water consumption) 40-80 L/h |
Overall Dimension(L*W*H) (including foundation) | 3660*700*1500 |
Dimension of Each Part | 1200*700*1500(front) |
1460*700*1400(middle) |
1000*700*1400(back) |
Weight | About 1200kg |
