Product Name: High Speed Pharmaceutical Aluminum Plastic Blister Packaging Equipment

Introduction:

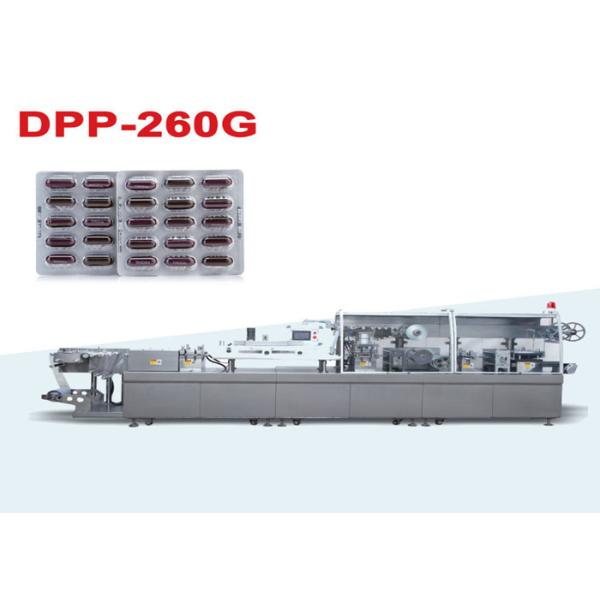

DPP-260G flat type high speed blister packaging machine is our advanced equipment designed under updated improvement. It equipped top brand PLC controller with touch screen displayed in double languages,frequency converter for speed control, servo traction ensure the length of blister sheet adjustable within the range.

Technical Parameters:

Description:

1. The machine used of closed structure, new safety protection design. Adopts top brand PLC controller with touch screen displayed in Double Languages, Frequency inverter for speed control, servo traction which can ensure the length of blister traction adjustable within the range.
2. The machine comes with PVC quick installation and complete set guide way.
3. With thermal temperature control and inspection, main machine over load protection, PVC and PTP packing material position inspection, feeder material position inspection, failure automatic debug and alarm, automatic protection and stop running.
4. The machine adopts newly designed Speed adjustable Double-Hopper System feeder with high precision optical control for high efficiency feeding. It is suitable for different blister sheet style and irregular shape material feeding (Special feeder can be designed according client’s requirement.)
5. All working station of the machine adopts flat type structure with Mould trapezoid style fixing, forward and backward moveable makes much more easier and safer while operation and changing mould.
6. It adopts Contact style preheating, compressed air blow forming, upper and downer mould dot sealing, double servo pulling system, double Print Register Controlling system makes perfect packaging.
7. The cutting edge between blisters are only 1mm, it saves more packaging material and protect our environment.
8. Discharging finished product in right order, automatic collection of bad products, auto rewinding of strap material to ensure easy collection.
9. The machine has been designed into separated body (three parts) which can be disassembled for easier move into lifts or workshops.

Package

WARRANTY

1. Technical Support(24 hours on line trademanager, skype, MSN, mobile).
2. Loading inform(loading port, destination port, shipping date, CBM, weight, etc.)
3. Video for debugging after sent products.
4. Pre-maintance.
5. Quality guarantee for 1 year. Within warranty period, we provide spare parts for replacement free if not man-factor.
6. Welcome send us samples to test on our machine and we will take video for you to confirm.
7. Welcome visit our factory for checking machine and offer training course for your workers.
