Brand Name : | HUALE MACHINERY |
Model Number : | ZH-200 |
Certification : | CE ISO9001 |
Price : | Negotiation |
Supply Ability : | 10 Set per month |
Delivery Time : | 45 working days after received your payment. |
High Speed Auto Cartoning Machine Cosmetic Packaging Machine 380V 50HZ
Technical parameters
Cartoning speed | 200 carton/min | |
Carton | Request | 250-350g/m2(according to carton size) |
Specification | (55-220)*(20-100)*(14-70)mm | |
Leaflet | Request | 55-70g/m2 |
Dimension Range | (80-240)*(90-190)mm(L*W) | |
Folding area | (1-4)fold | |
Compressed air | Pressure | ≥0.6Mpa |
Consumption | 120-160L/min | |
Power | 380V 50HZ 1.5kw | |
Dimension | 4300*1440*1600mm (L*W*H) | |
Net weight | 1500kg |
Description
1. Automatic high speed cartoning machine
2. PLC and touch screen
3. Speed is 200 boxes/min
4. Insert product and leaflet

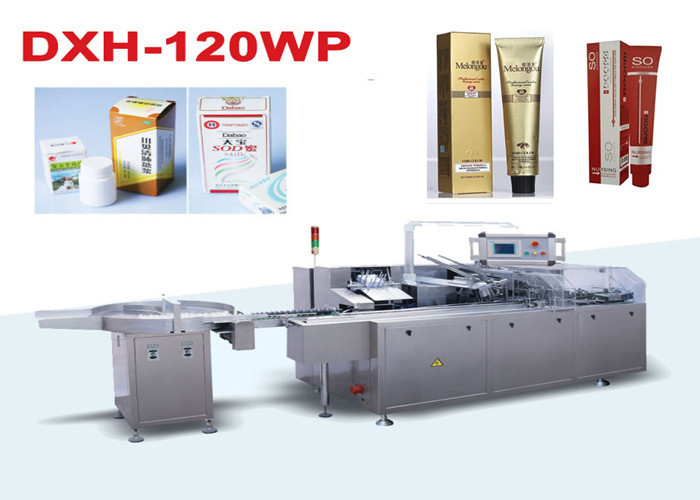

Picture of the Product
![]() |
